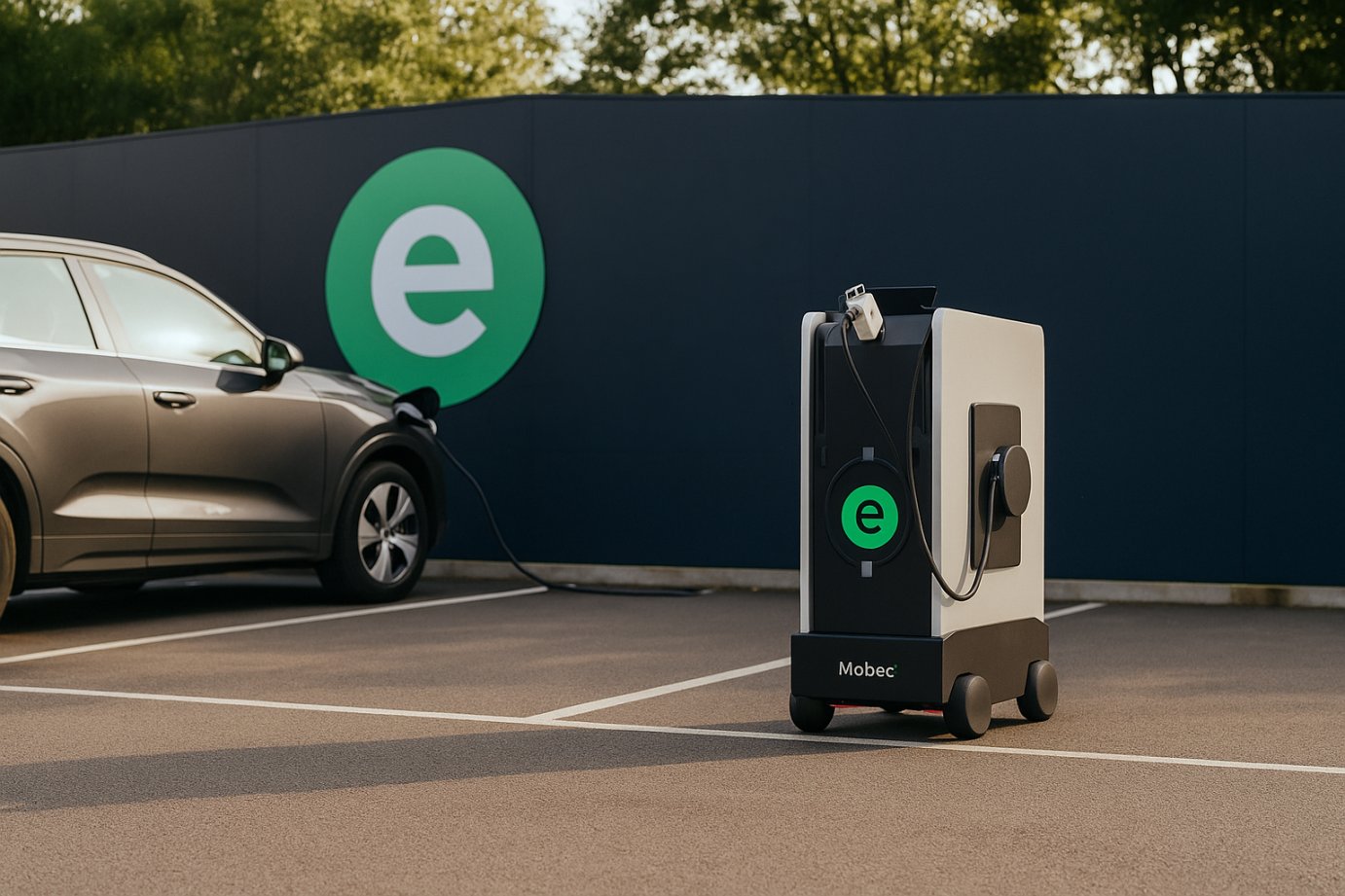

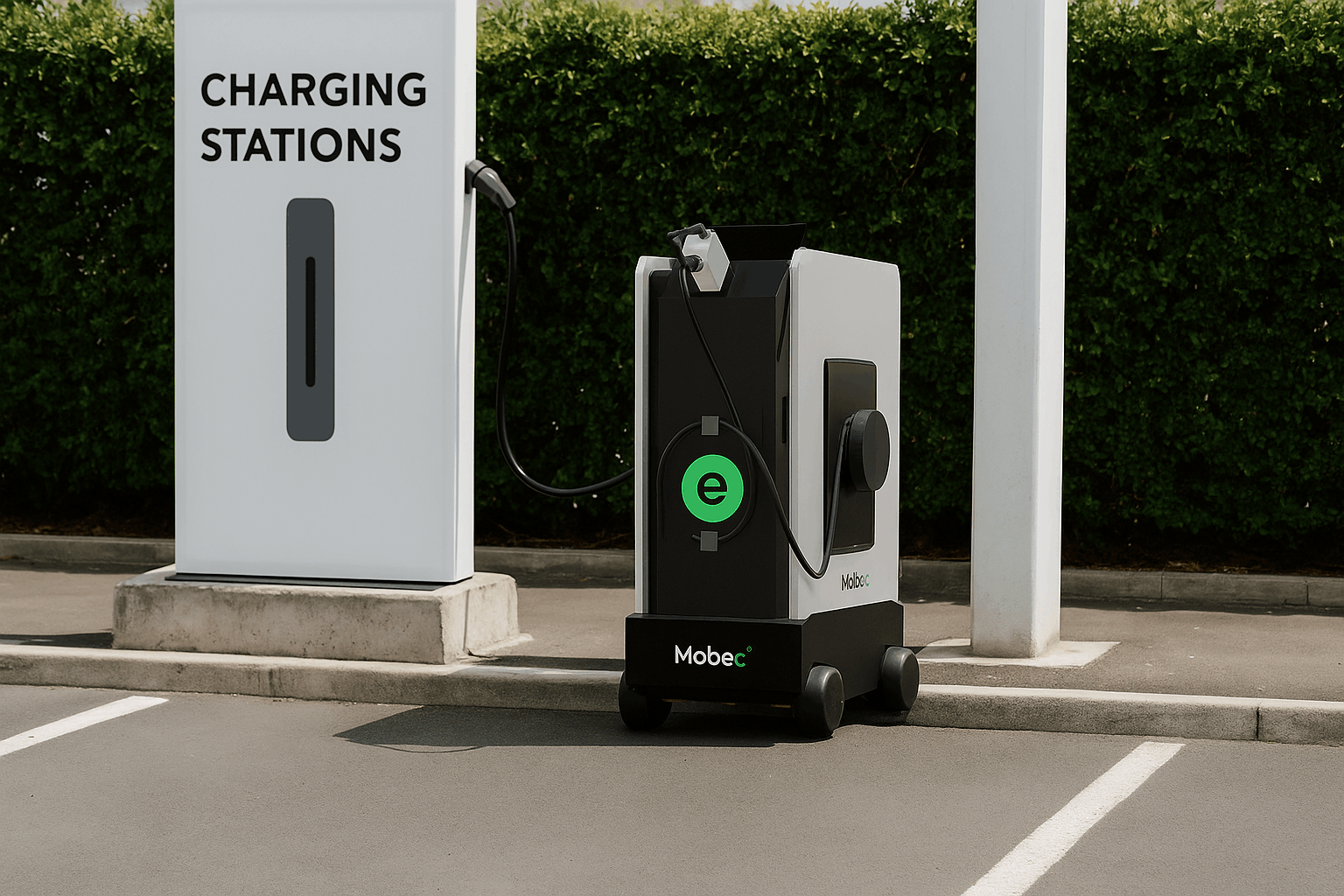

MAC 120 (without battery)

120 kW movable DC ultra-fast charger. Dual CCS2+CHAdeMO guns with liquid-cooled cables. N+1 hot-swap modules. OCPP 2.0.1 + ISO 15118-2. For highway corridors and bus depots.

DC Output Power	120 kW total
Gun Configuration	Dual: 60+60 kW or Single 120 kW
Connectors	CCS2 + CHAdeMO
Cable Cooling	Liquid-cooled with pre-conditioning
Power Architecture	4×30 kW modules (N+1 redundancy)
Module Hot-Swap Time	<20 min by technician
Charge Time (20–80%)	<30 min (60 kWh EV) min
Input Voltage	415 V 3-Phase AC
Input Current	200 A max
Communication	OCPP 2.0.1 + ISO 15118-2 PnC + CAN
Connectivity	4G LTE Cat-16 + Wi-Fi 6 + GigE + SFP
Display	10-inch IPS 1000 nit anti-glare touchscreen
Payment Methods	RFID, NFC, QR, UPI, Fleet Card
Protection Rating	IP54
Impact Resistance	IK10
Surge Protection	6 kV
Dimensions (W×H×D)	1000×2100×700 mm
Weight	520 kg
Certification	BIS, CE, IEC 62196-3, UL 2202
V2G Standard	ISO 15118-20 (activated)
